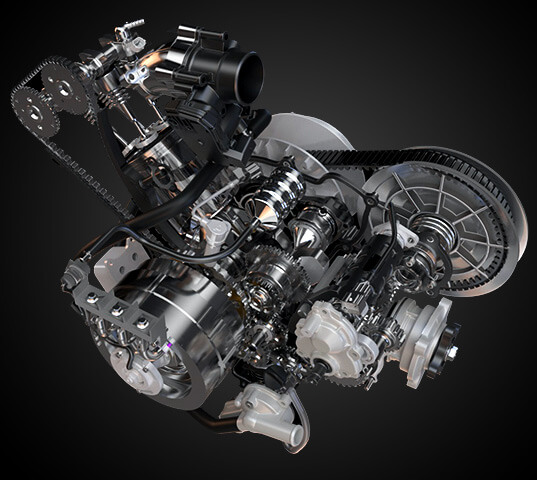

570CC liquid cooled, single cylinder, 4-stroke, DOHC engine,delivers max 44HP and 48N·m of torque. The 570CC engine adopts the optimal design of insulator spark plug and optimized CAM. With the addition of electronic fuel injection system, the powertrain has good adaptability in high/low temperature and high altitude environment.
The Dual Oil Column Piston cools the cylinder temperature rapidly. Let the speed blood continue to boil.
Water and oil heat exchanger cooling system improves the reliability of power output under tough off-road conditions.
You can access the real-time data of your vehicle through Smart Commanding System(SCS) . The intelligent interaction with your vehicle leads you to epic places to ride!
When you get close to Snarler, you can activate your vehicle by Bluetooth through your mobile phone(AirLock). You can also use the APP (cellular data) to unlock the vehicle remotely with your mobile phone as the key.
Get the Speed limit Settings, EPS Settings on your phone. Customize your Powersport for a personal fit, so you can enjoy the drive!
Add SOS emergency contact person. In case of serious collision/roll, the APP will automatically send SMS with location to the emergency contact person.
Team up with friends. The offline map, wireless location, wireless phone help you explore everytime you ride.
Vehicle data view: residual mileage, real-time torque, horse power, EPS mode, subtotal mileage, speed curve, etc.
Search ‘Segway Powersports’ through Android or Apple app store
570CC DOHC Engine
210mm Rear Suspension Travel 180mm Front Suspension Travel
liquid cooled, single cylinder, 4-stroke
0-60km/hr Acceleration time
Engine Braking System(EBS) | Standard |
Compression Ratio | 10.6 |
Rear Axle | Rear Diff-Lock (Optional) |
Front Axle | Differential Steering |
Drive System | On-Demand 2WD / 4WD |
Torque | 48 N.m |
Horsepower | 44 hp |
Engine/Motor Type | 570cc, 4-Stroke Single-Cylinder,DOHC Engine |
Powertrain | Fuel Engine |
Rear Suspension & Travel | Dual A-Arm; Rear Travel: 8.3″ (21cm) |
Front Suspension & Travel | Dual A-Arm; Front Travel:7″ (18cm) |
Shock | Oil Shock/ Air Shock(Optional) |
Smart-Moving App | √ |
Smart Touch Screen | / |
Dashboard | Digital Screen |
Smart Commanding System(DTU+SDC) | √ |
Towing Capability | 771 lb(L) 661 lb(S) |
Payload Capacity | 594 lb(L) 429 lb(S) |
Bed Box Capacity | / |
Front/Rear Rack Capacity | Front: 88lb / Rear: 176lb |
Fuel Capacity | 6.1 gal |
Dry Weight | 847 lb(L) 792 lb(S) |
Wheelbase | 57.1″(L) 51.2″(S) |
Seat Height | 36.6″ |
Ground Clearance | 10.6″ |
Vehicle Size(Length/Width/Height) | 90.5 x 49.2 x 60.6″ (L) 84.6 x 49.2 x 60.6″ (S) |
Seats | 2 Seats(L) 1Seat(S) |
Colors | To Be Defined |
Winch | |
Lights | LED |
Break | Four-wheel Hydraulic Disc Brake |
Cooling System | Duel Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System |
Frame | High-strength chromium-molybdenum steel frame |
Smart Electronic Power Steering(EPS) | Three Modes: Standard / Comfort / Sport(L) Three Models: Standard / Comfort / Sport(S) |
